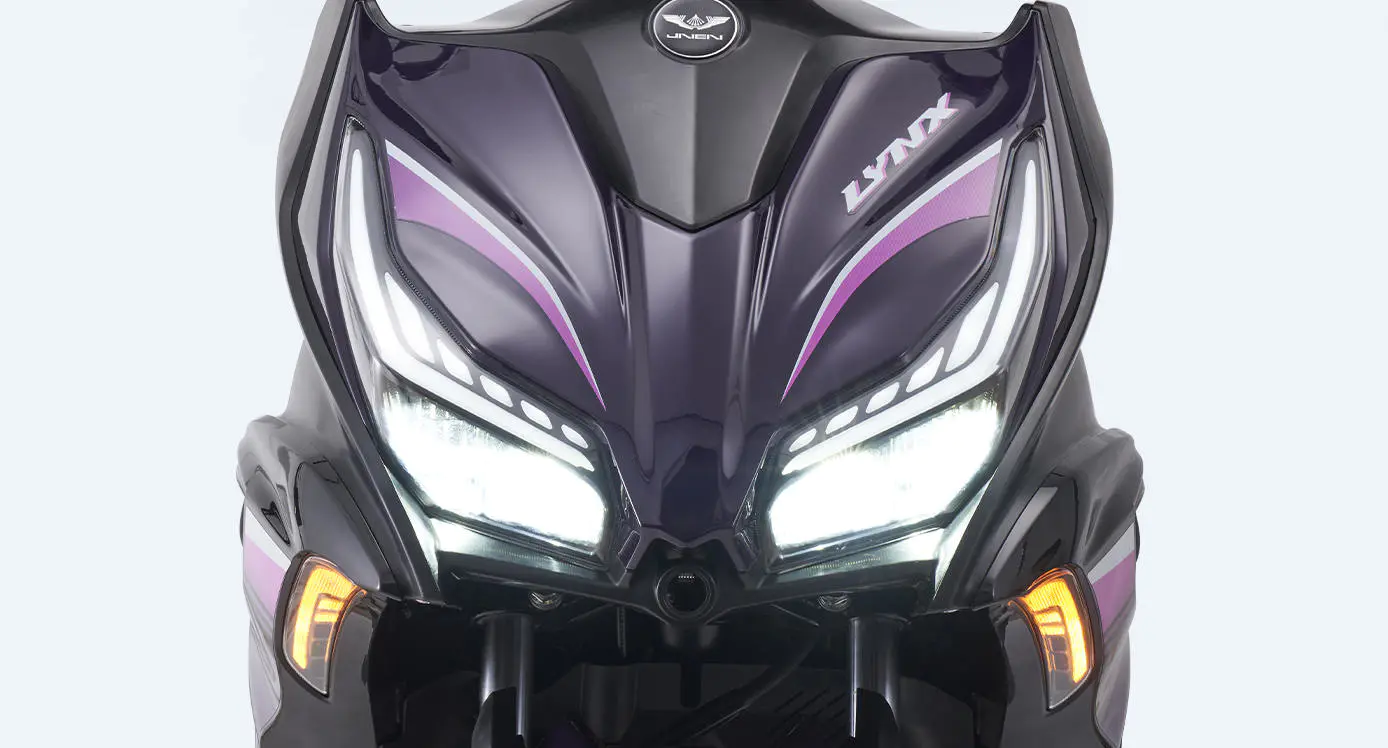

LED LIGHTS
Lamps with a full set of LED water light sources, headlights with a double lamp effect, boost illumination brightness, and allow the driver to see the night driving line better.In addition, all lighting meet ECE and other regulations.
| Models | Lynx (water-cooled 150) | Lynx (water-cooled 125) | Lynx (air-cooled 175) | Lynx (water-cooled PCX150) |
| Displacement | 149.6cc/177.3cc | 124.6cc | 168.8cc | 155.1cc |
| Engine Type | Single-cylinder two-valve four-stroke-water-cooled-air-cooled | Single-cylinder, two-valve, four-stroke-variable valve | Single-cylinder, horizontal, four-stroke | Single-cylinder two-valve four-stroke-variable valve |
| Bore x stroke | 57.4×57.8mm ø62.5×57.4mm |
ø52.4 x 57.8 mm | 61×57.8 | 57.4×57.8 |
| Compression Ratio | 10.9:1/10:1 | 9.6:1 | 9.6:1 | 10.5:1 |
| Max.Power | 9.5kw/7500 r/min 7.8kw/7500r/min |
7.0kW/7500 | 9.0kW/7500 | 11.0kW/8500 |
| Max.Torque | 13.2N-m/5500r/min 12.0N-m/6000 r/min |
9.0N.m/6000 | 13N.m/6000 | 13.5N.m/6500 |
| Fuel supply method | MOTION EFI/Carburettor | Điện | Iso-vacuum carburettor | Điện |
| Fuel evaporator | As per regulatory requirements | As per regulatory requirements | As required by regulations | As required by regulations |
| Fuel control | Single overhead camshaft 2-valve | Single overhead camshaft 2-valve | overhead camshaft. | Single overhead camshaft 2-valve |
| Cooling system | Side-mounted water-cooled/air-cooled | Water-cooled | Forced air-cooled | Water-cooled |
| Fuel capacity | 11L | |||
| Seat height（mm） | 795 | |||
| Overall Length（mm） | 2000 | |||
| Overall Width（mm） | 720 | |||
| Overall Height（mm） | 1170 | |||
| Ground Clearance（mm） | 140 | 145mm | / | 145mm |
| Wheelbase（mm） | 1375 | |||
| Curb Weight | 130kg | 125kg | / | 125kg |
| Maximum load | 150kg | |||
| Head lock | Yes | Yes | / | Yes |
| Fuel tank lock | Yes | Yes | / | Yes |
| Seat lock | One-touch switch on | One-touch switch on | / | One-touch switch on |
| space under seat | 20L | |||
| Front Suspension | Front Vertical | Front Vertical | / | Front Vertical |

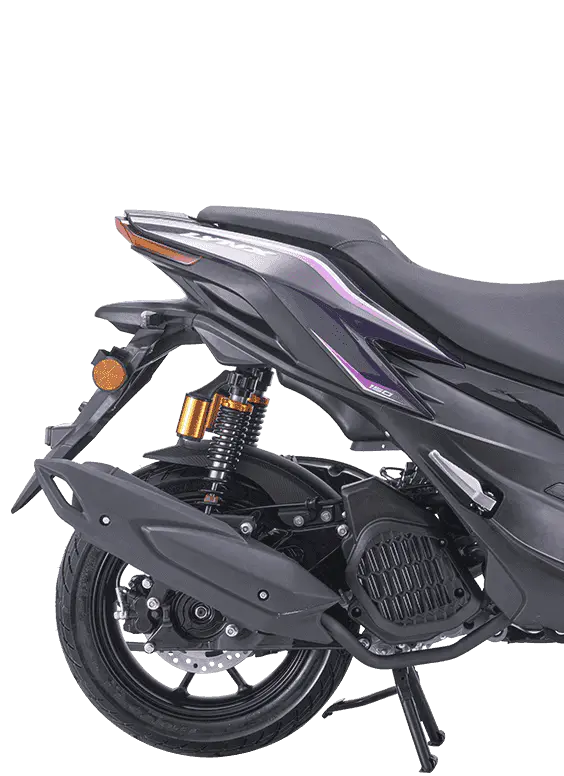

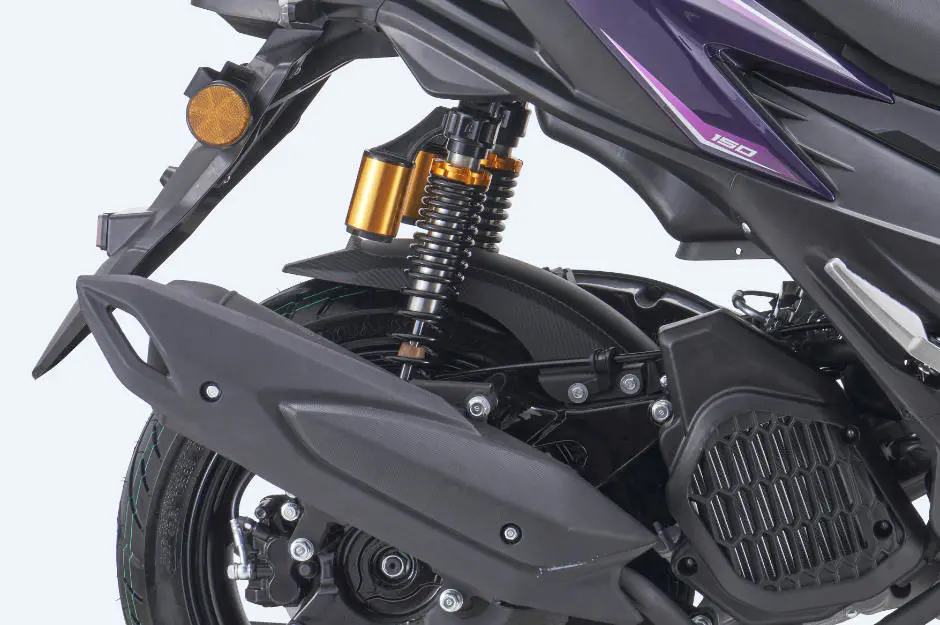

| Rear Suspension | Rear double reduction | Rear double reduction | / | Rear double reduction |

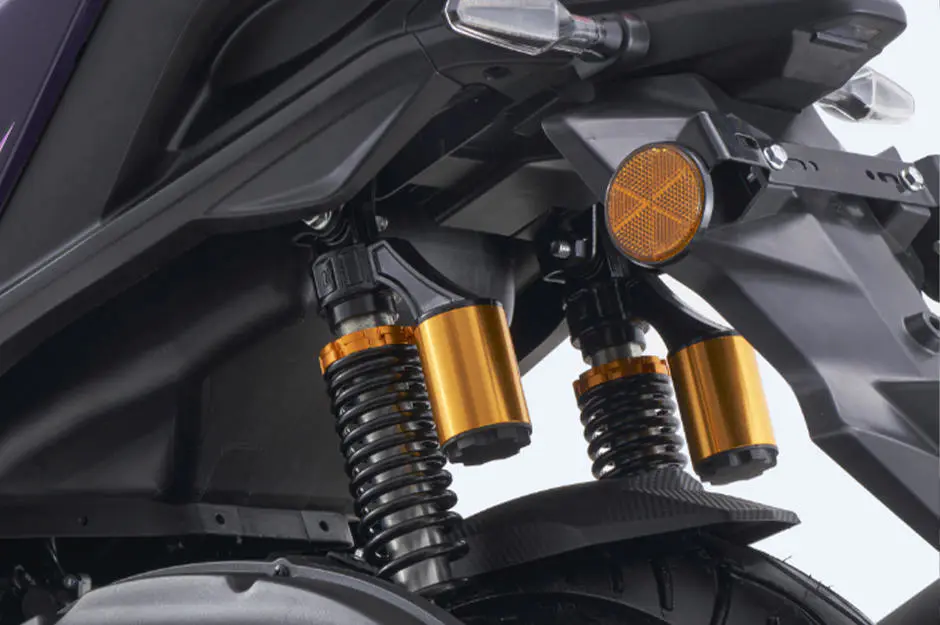

| Adjustable Rear Suspension | Preload adjustment with airbag | Preload adjustment with airbag | / | Preload adjustment with airbag |
| Front Rim | Die-cast aluminium wheels MT2.5X14 inch | Die-cast aluminium wheels 14 | / | Die-cast aluminium wheels 14 |
| Rear Rim | Die-cast aluminium wheels MT3.5X14 inch | Die-cast aluminium wheels 14 | / | Die-cast aluminium wheels 14 |
| Fr. tyre | 100/80-14 | 110/80-14 M/C 53P | / | 110/80-14 M/C 53P |
| Rr. tyre | 120/70-14 | 120/70-14 M/C 62P | / | 120/70-14 M/C 62P |
| Tubless | Tubeless | Tubeless | / | Tubeless |

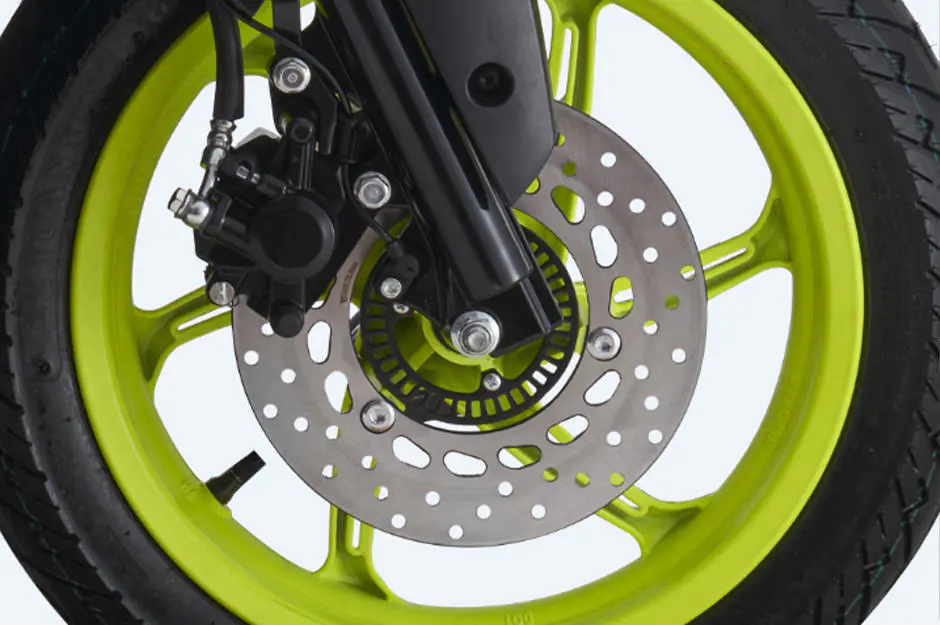

| Fr. Brakes | Single disc | Single disc 230mm | / | Single disc 230mm |
| Rr. brakes | Right single disc 240 | Drum brake 130mm | / | Drum brake 130mm |
| ABS | 150cc ABS standard (dual channel) | ABS option (single channel) | / | ABS option (single channel) |
| ABS | 175cc CBS optional | ABS optional (single channel) | / | ABS optional (single channel) |
| headlight lens or reflector type |
LED Class D | LED | / | LED |
| turning indicator | LED | LED/12V,10WX2 | / | LED/12V,10WX2 |

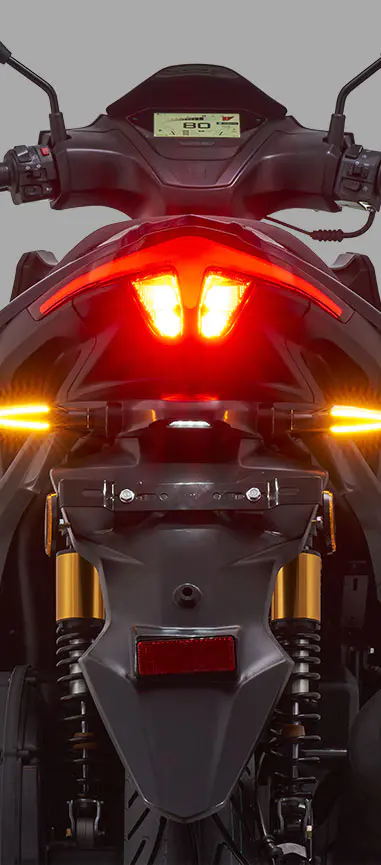

| rear light | Streaming LED | |||
| Position lights | Streaming LED | |||
| License plate lamp | LED | |||
| Headlight, Position Lamp Switch | according market demand | Yes | / | Yes |

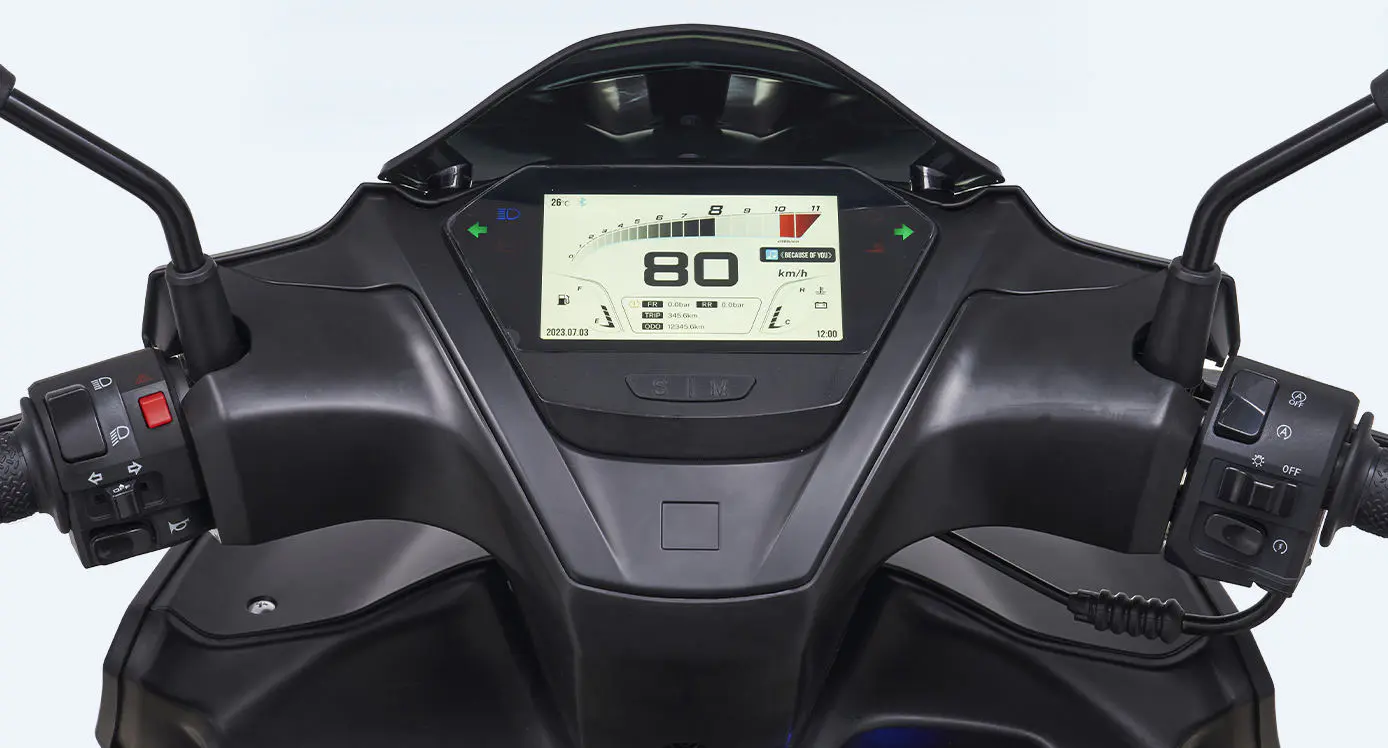

| full digital screen two-color |
5 inch TFT screen, LCD digital liquid crystal (optional) | LCD digital liquid crystal | / | LCD digital liquid crystal |
| USB socket（built-in) | Yes | 12V power connector (cigarette lighter) | / | 12V power connector (cigarette lighter) |

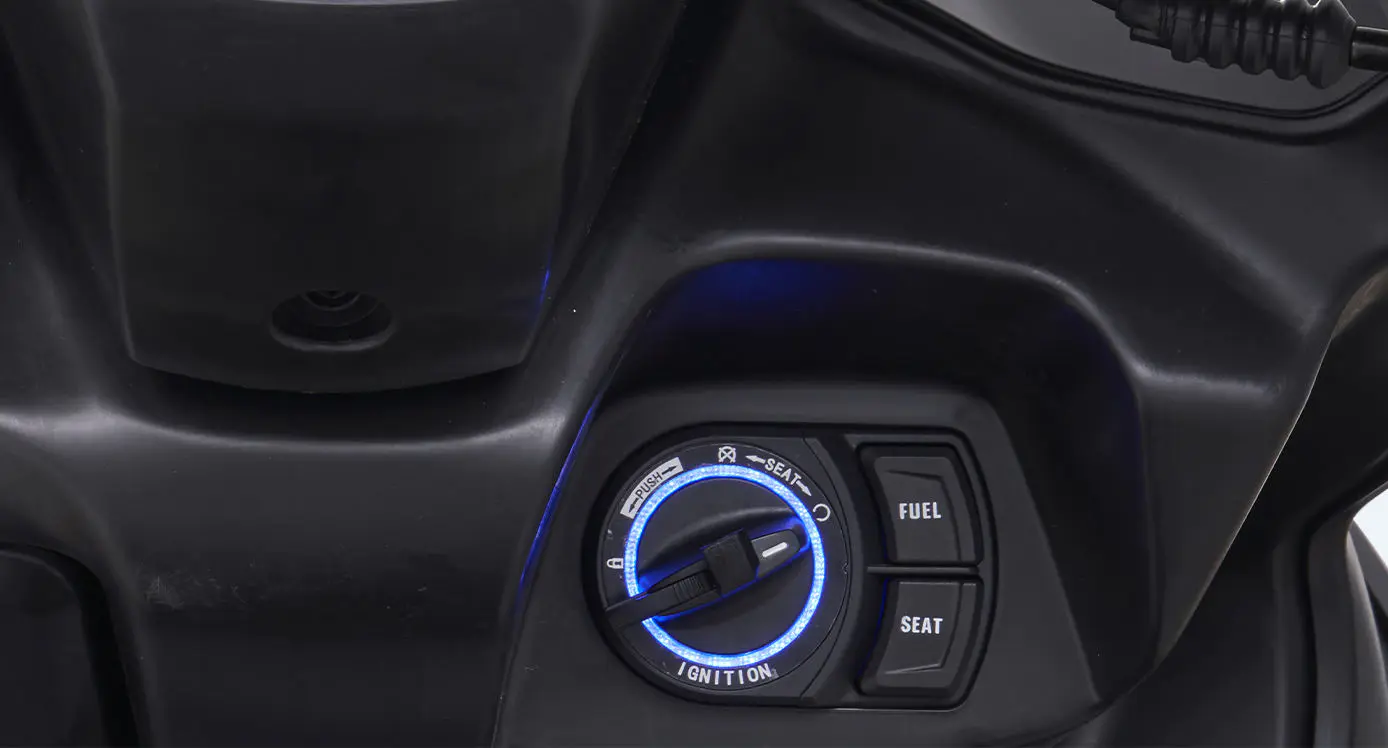

| keyless-go | Yes | No | / | No |
| start-stop | No | Yes | / | Yes |
| open seat from power lock | Yes | Yes | / | Yes |
| Top speed（km/h） | ≥95KM/h | / | / | / |
| Fuel comsumption | 3L/100km | / | / | / |
