Vehicle style

 GY6-150-2V

 GY6-175-2V

Displacement（cc）

149.6mL

177.3mL

Dimensions(L*W*Hmm)

1935*780*1225 (mm)

1935*780*1225 (mm)

Wheel Base(mm)

1405

1405

Net Weight (kg)

120

120

Ground Clearance(mm)

105

105

Seat Height (mm)

775

775

Engine Type

JN1P57QMJ

JN1P63YMK-2

Engine Style

Air-cooled，1-cylinder/4stroke/2-valve

Air-cooled,1-cylinder/4stroke/2-valve

Bore * Stroke

57.4*57.8mm

62.5*57.8mm

Compression Ratio

9.3:1

9.6:1

Max Power

6.2Kw/7500r/min

8.3Kw/7000r/min

Max Torque

8.8N.m/6000r/min

11.5N.m/5500r/min

Starter/Ignition

Electric /C.D.I.

Electric /C.D.I.

Gear shifting type

Automatic CVT

Automatic CVT

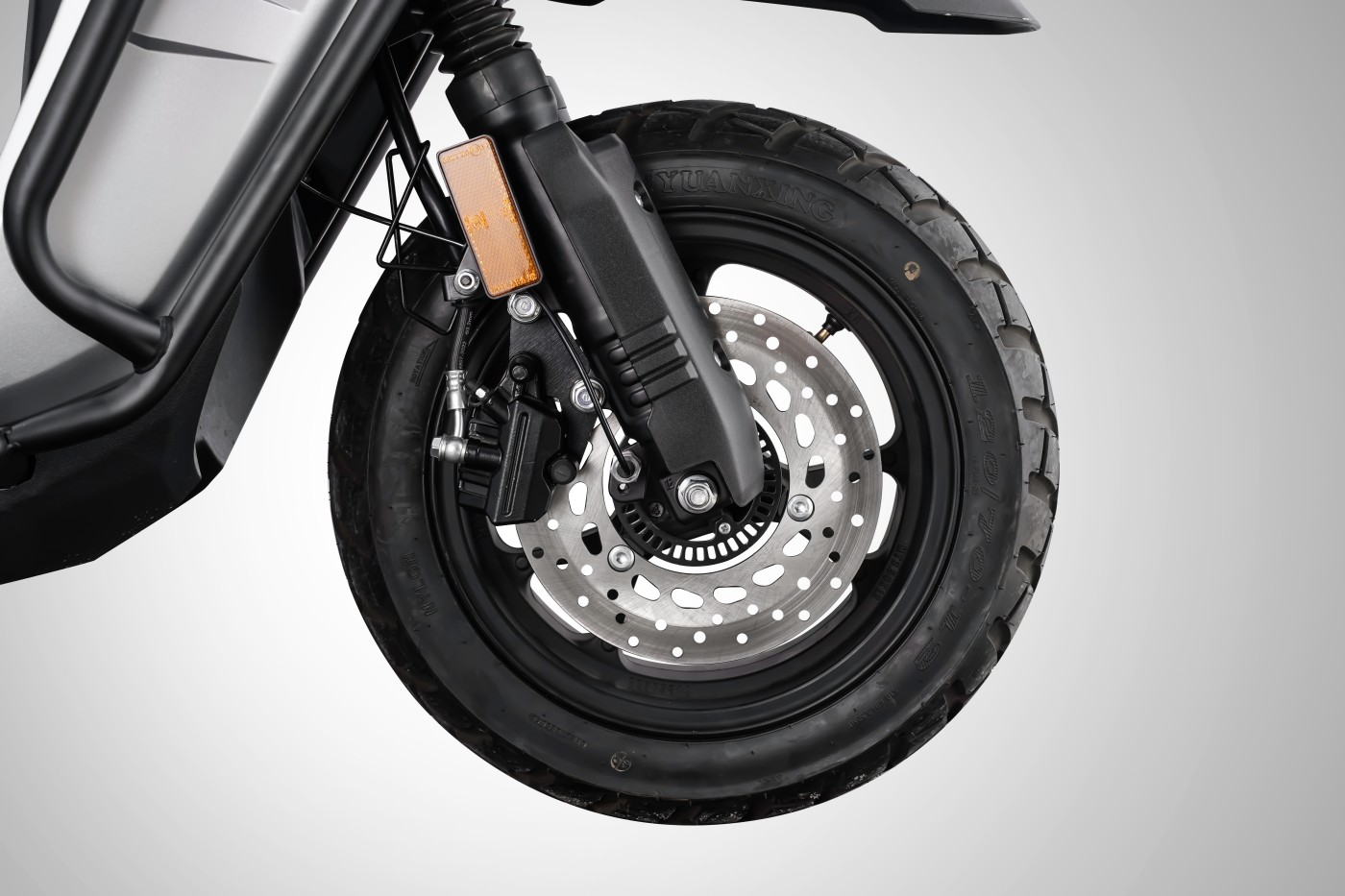

Brakes

Disc, 2-piston caliper

Disc, 2-piston caliper

Front suspension

Telescopic forks, unadjustable

Telescopic forks, unadjustable

Rear suspension

Dual shock-absorber,adjustable

Dual shock-absorber,adjustable

Front/Rear  Tire

 Front/Rear:120/70-12

Front/Rear:120/70-12

Battery

12V 8.6 Ah

12V 8.6 Ah

Max Speed(km/h)

80-85

90-95

Max Load(kg)

150

150

Fuel Tank

9 ±0.5L

9 ±0.5L
